MLLSE RTX 3080 10GB Graphics Card

MLLSE RTX 3080 10GB GDDR6X 320-Bit PCI-E 4.0×16 Graphics Card

Powerful NVIDIA GeForce RTX 3080 GPU featuring 10GB of ultra-fast GDDR6X memory, triple-fan cooling, and PCI-E 4.0 interface — built for 4K gaming, rendering, and professional workloads.

⚙️ Key Features

• High Memory Capacity: 10GB GDDR6X VRAM for large-scale rendering and 4K gaming.
• Triple-Fan Cooler: Keeps the GPU cool and stable during intensive gaming sessions.
• PCI-E 4.0 Interface: Faster data transfer rates for high-performance computing.
• GPU Model: NVIDIA GeForce RTX 3080 (GA102).
• Stream Processors: 8704 CUDA cores.
• Core Clock: 1440 MHz | Memory Clock: 19000 MHz.
• Memory Type: GDDR6X | Bus Width: 320-bit.

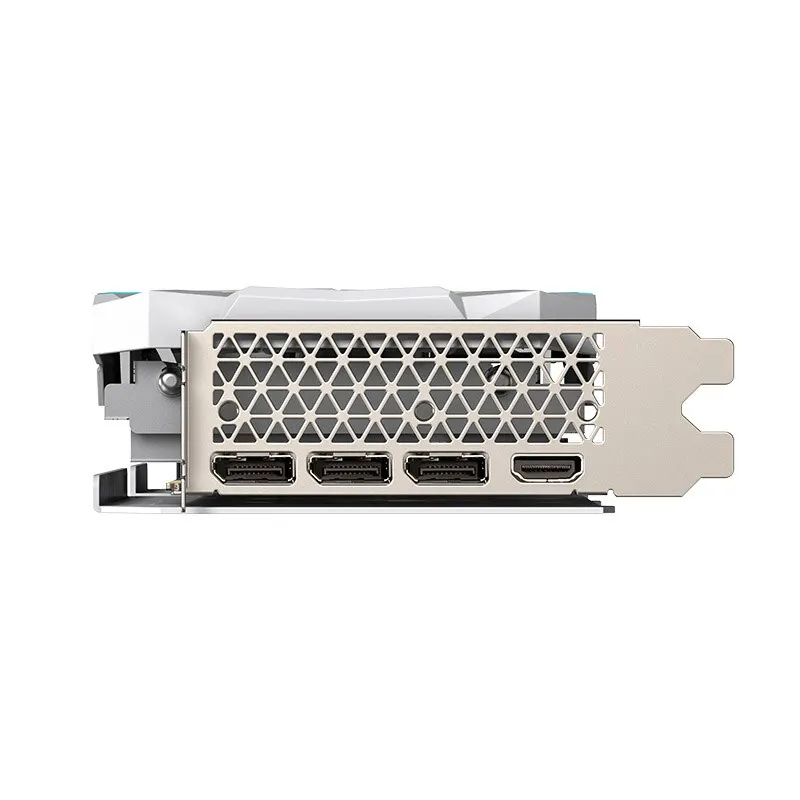

• Output Ports: HDMI ×1, DisplayPort ×3.
• Power Connector: Dual 8-pin | Consumption: 320W.
• Recommended PSU: 750W or above.

❄️ Advanced Triple-Fan Cooling

Strong Wind Design: High-speed, large dual-fan setup doubles airflow for efficient heat dissipation.

Direct Copper Contact: Large-area copper fins transfer heat rapidly, maintaining low temperatures even under full load.

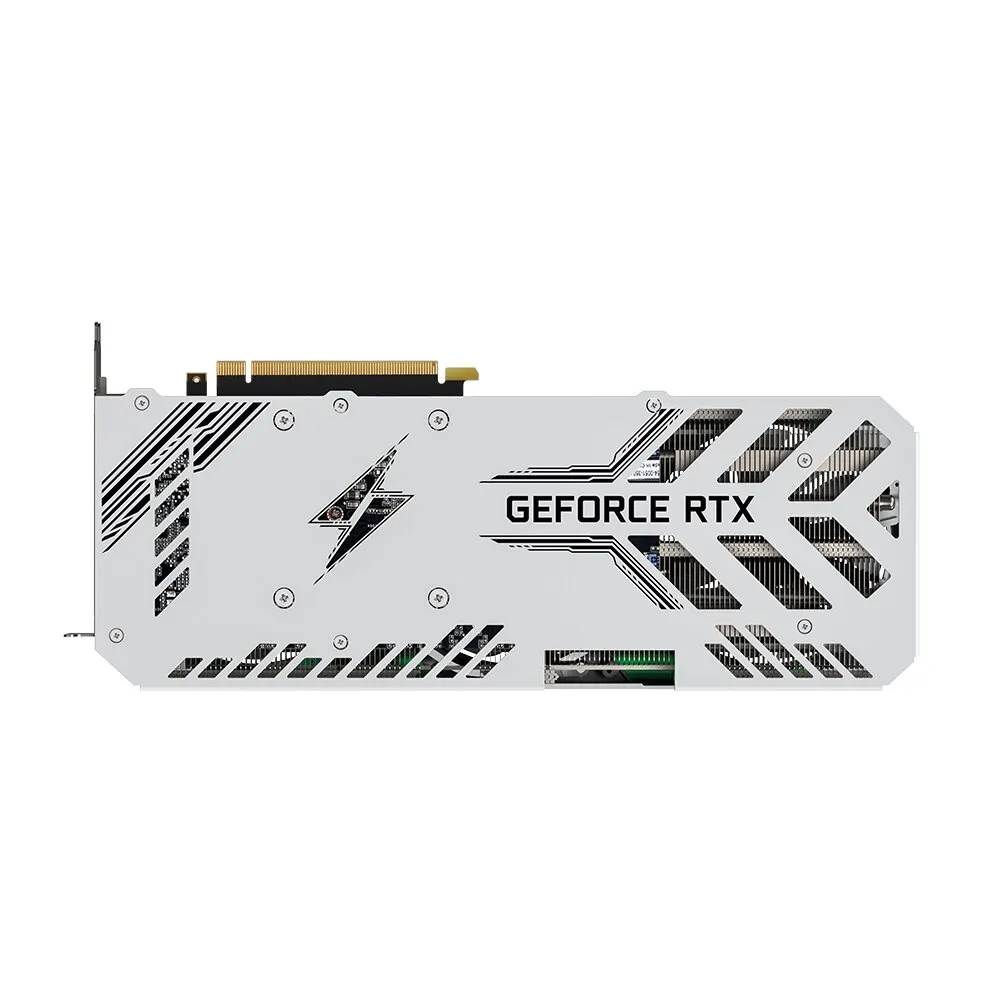

🛡️ Full-Size Metal Backplate

The full-size metal backplate prevents PCB bending and adds strength. Precision airflow cutouts improve cooling performance and stability.

🖥️ 4K / 8K Display Support

HDMI and DisplayPort outputs support ultra-high resolutions — up to 7680×4320px (8K) for the most immersive visuals.

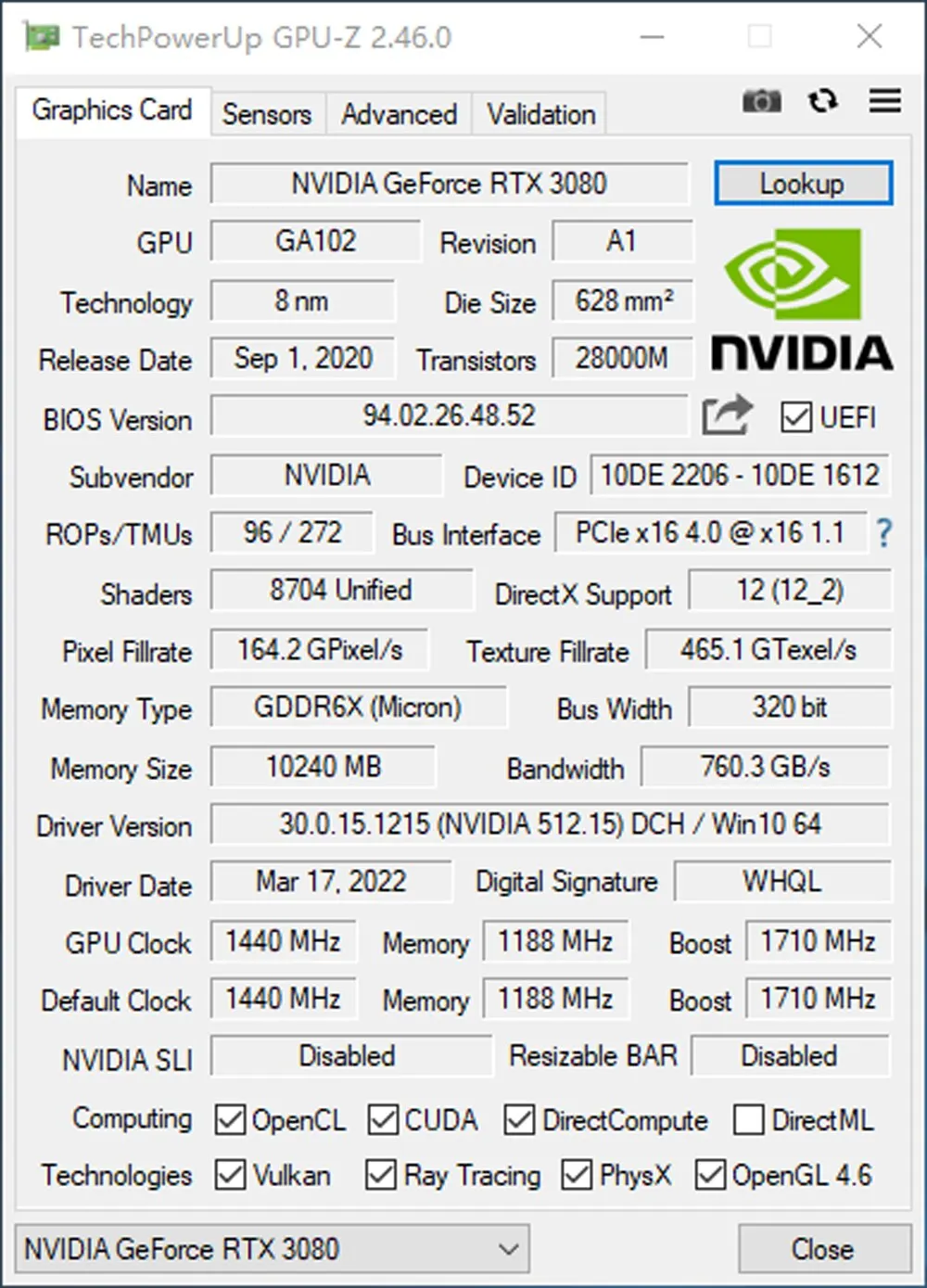

📊 RTX 3080 10G Specifications

🧪 Benchmark Test Results

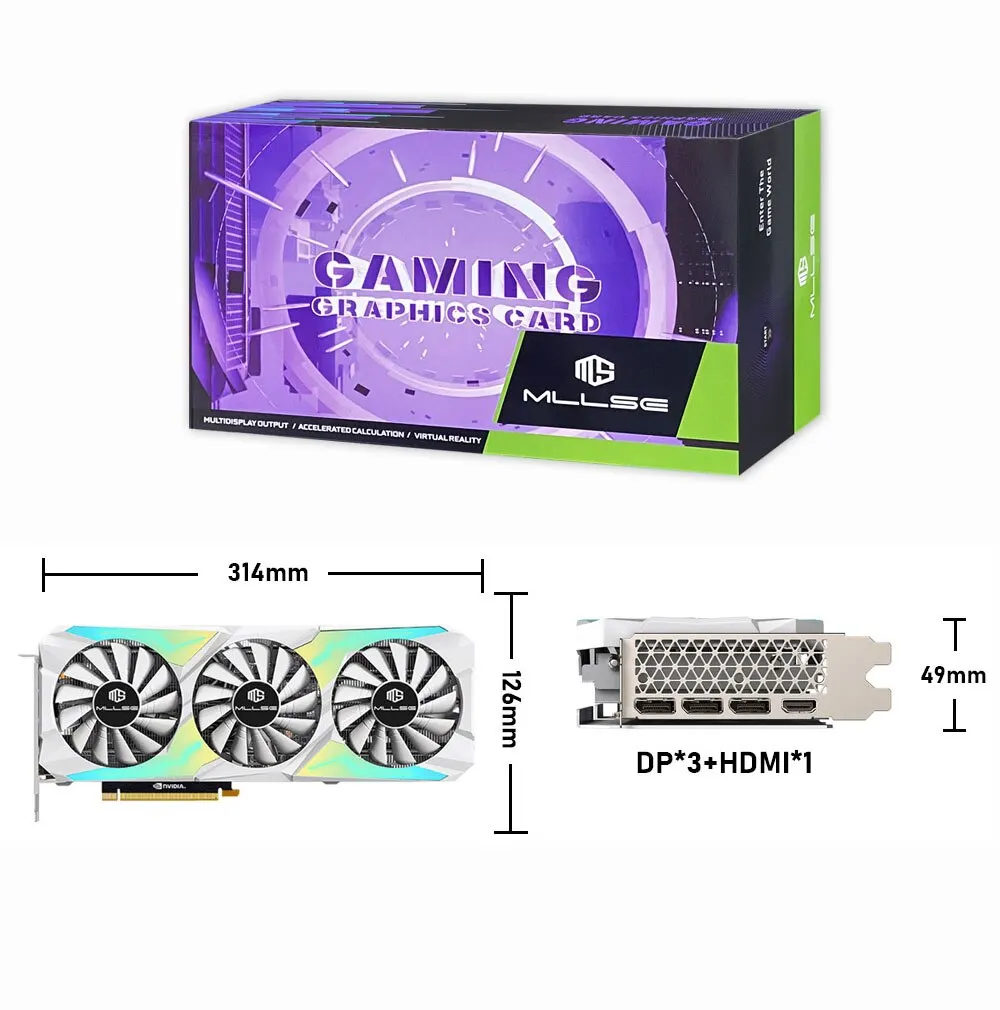

📐 Product Dimensions

Size: 314 × 126 × 49 mm

📦 Package Contents

• Graphics Card ×1
• Power Line ×1
• Warranty Card ×1
• User Manual ×1
• Fix Screws ×2

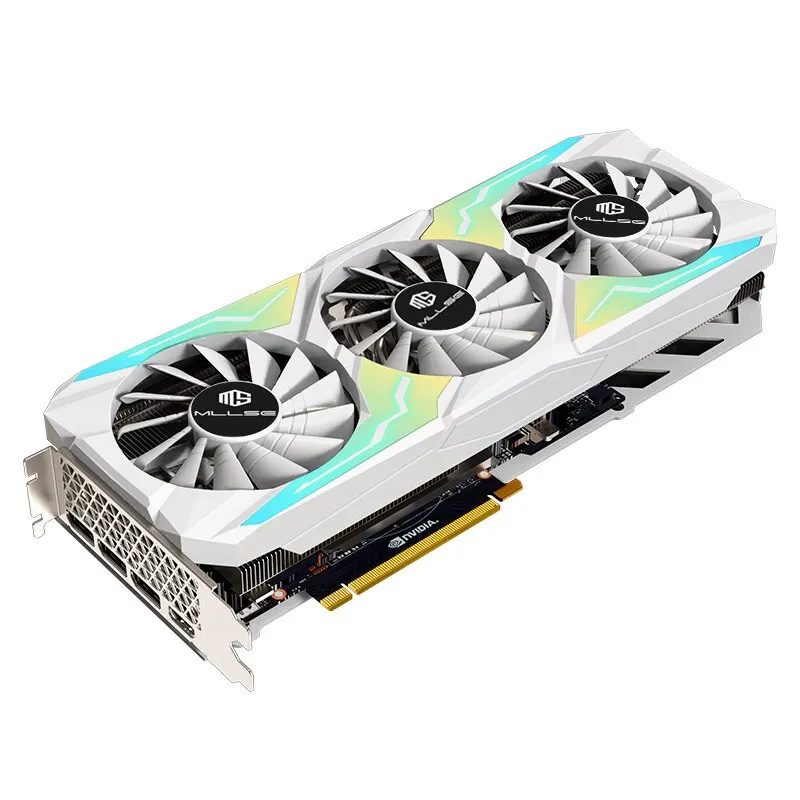

📸 Real Product Display

🧰 Installation Guide

1. Turn off the computer and unplug the power cord.
2. Open the chassis cover and locate the PCI-E slot.
3. Remove the metal plate from the chosen expansion slot.
4. Insert the PCI-E connector securely into the slot.
5. Fix the graphics card using the provided screws.
6. Connect the power cable (8+8 pin) to the card’s power interface.

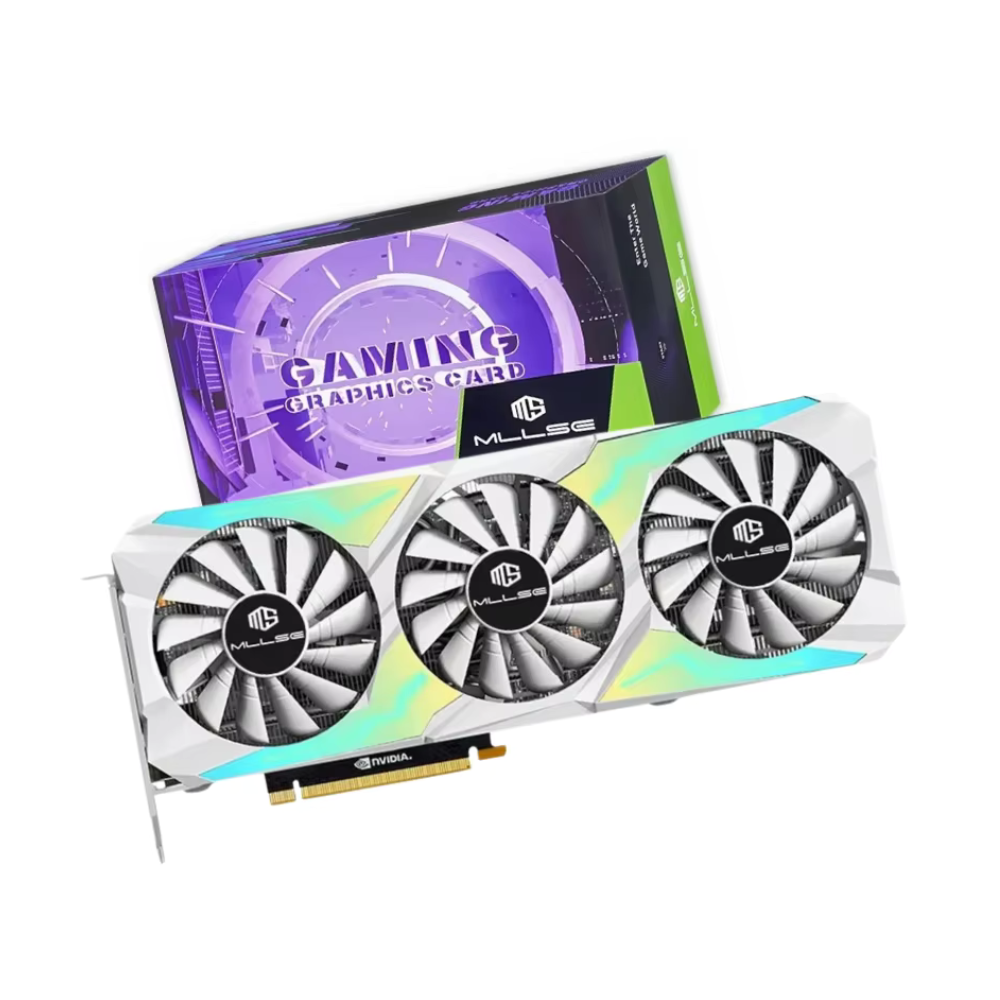

📦 Packaging Display

⚠️ Notice

• Normal operating temperature: 30°C–85°C.
• High load (3D games or HD video): ~90°C is acceptable.
• Above 95°C, the GPU auto-throttles to protect itself.

❓ Questions & Answers

Q: Why do golden fingers have slight scratches?
A: Each card undergoes multiple factory tests before shipment — small marks are normal and do not affect function.

Q: Where can I download drivers?
A: Visit the official NVIDIA or MLLSE website for the latest driver updates.
