MLLSE RTX 3060 12GB Graphics Card GDDR6 192Bit PCI Express 4.0 ×16 8Pin

MLLSE RTX 3060 12GB GDDR6 192Bit PCI-E 4.0×16 8Pin Graphics Card

Experience next-generation gaming power with the MLLSE RTX 3060 12GB, featuring GDDR6 memory, PCI-E 4.0 interface, and NVIDIA’s advanced Ampere architecture — delivering smooth, immersive, and efficient gameplay.

⚙️ Key Features

• High-Performance GPU: Ensures smooth frame rates and reliable operation for high-end gaming.
• 12GB GDDR6 Memory: High-speed video memory for fast rendering and multitasking.
• 192-Bit PCI-E 4.0 Interface: Enables rapid data transfer and improved performance efficiency.
• 8Pin Power Connector: Provides stable and reliable power delivery.
• NVIDIA RTX 3060 GPU: Powered by the GA106 core with 3584 CUDA processors for stunning visuals.
• 4K/8K Ready: Supports ultra-high-resolution gameplay and creative workflows.

📊 Technical Specifications

• GPU Model: NVIDIA GeForce RTX 3060 12GB
• Chip Code: GA106
• Stream Processors: 3584
• Core Clock: 1320 MHz
• Memory Clock: 15000 MHz
• Memory Type: GDDR6 | Bus Width: 192-bit
• Output Ports: HDMI ×1, DisplayPort ×3
• Power Connector: 8-pin | Consumption: 170W
• Recommended PSU: 550W or above

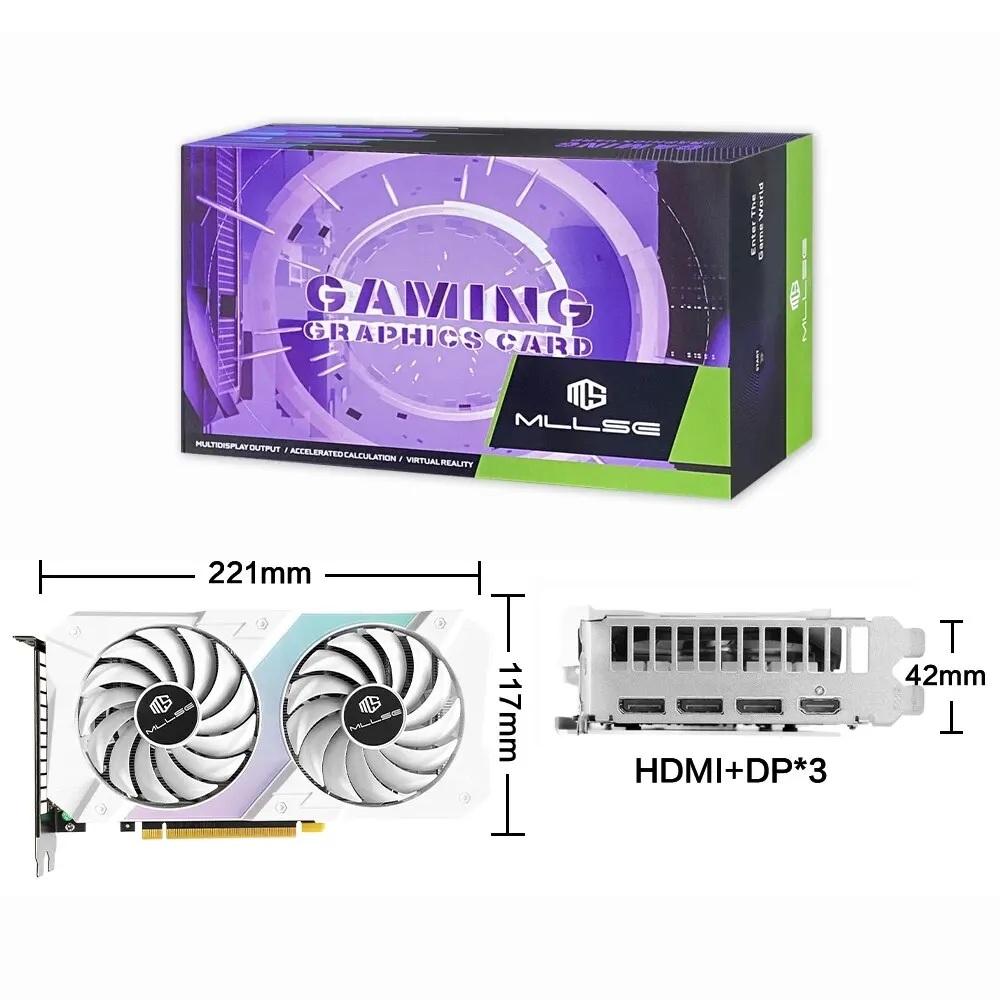

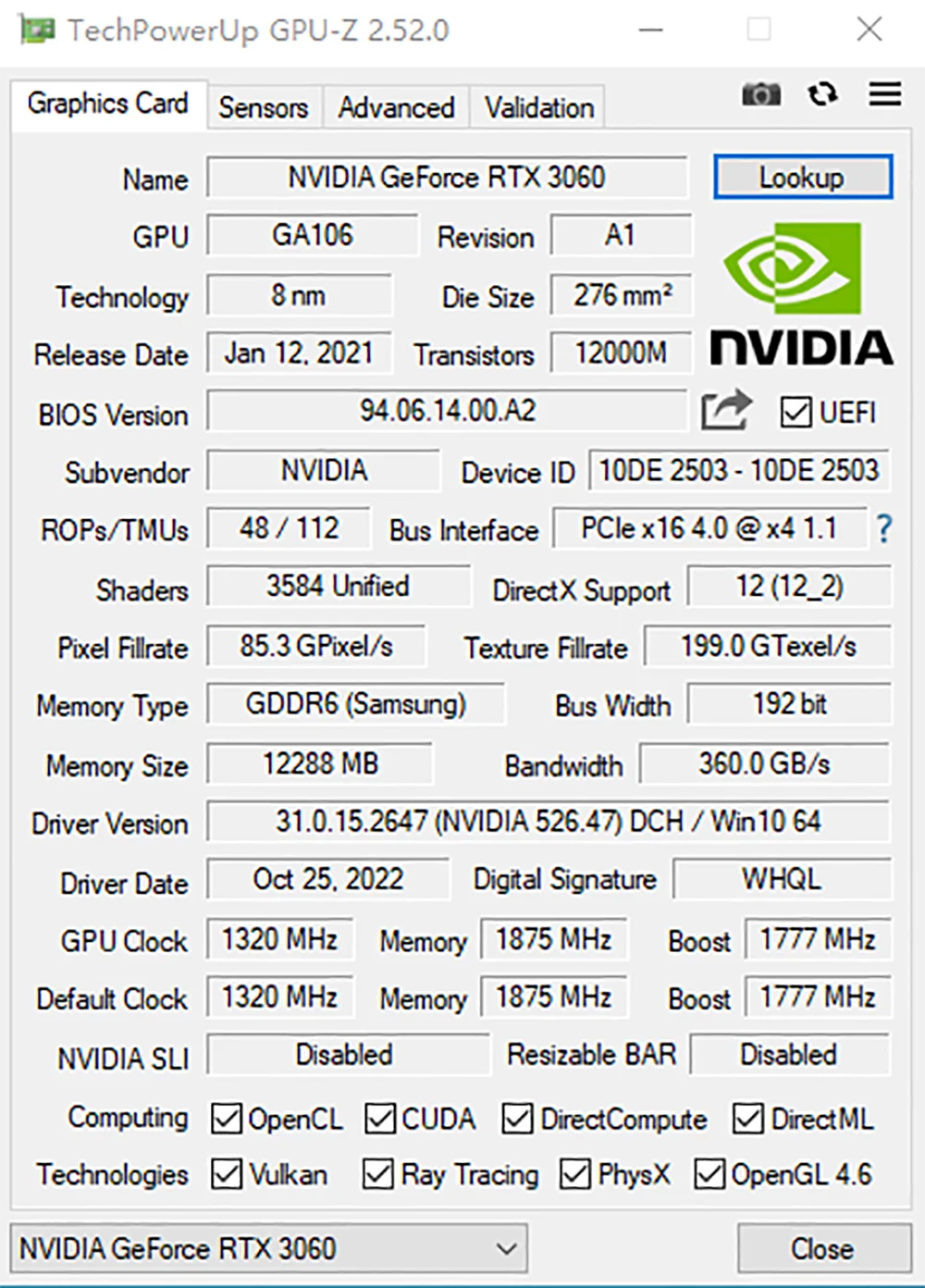

RTX 3060 12GB Parameters

❄️ Dual-Fan Cooling System

Strong Wind Design: High-speed dual-fan cooling doubles airflow, maintaining low temperatures for long gaming sessions.

High-Quality Components: Large-area PCB with high-speed GDDR6 12GB memory for durability and stability.

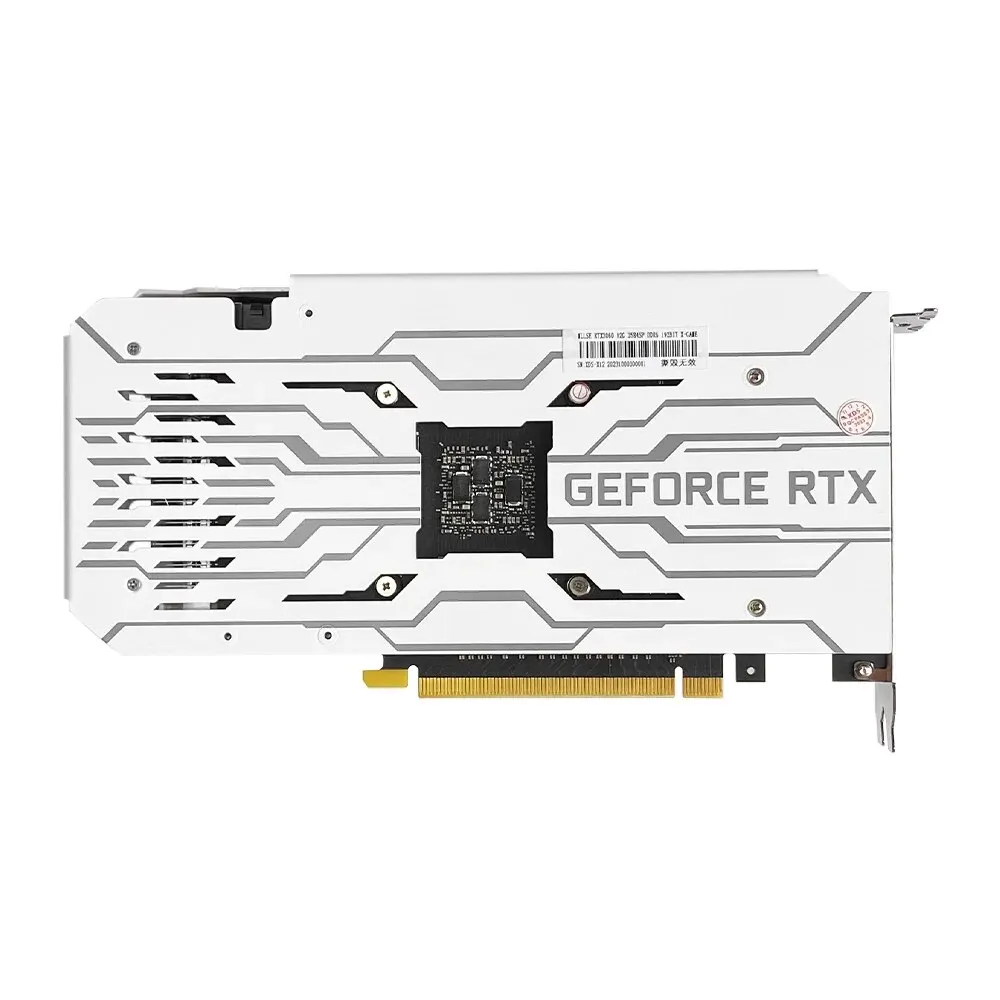

🛡️ Full-Size Metal Backplate

Protects the PCB from bending and impact while allowing improved airflow through backplate cutouts for better heat dissipation.

⚡ Power & Display Support

Power Consumption: 170W — low power draw with stable performance.
Recommended PSU: 550W minimum.

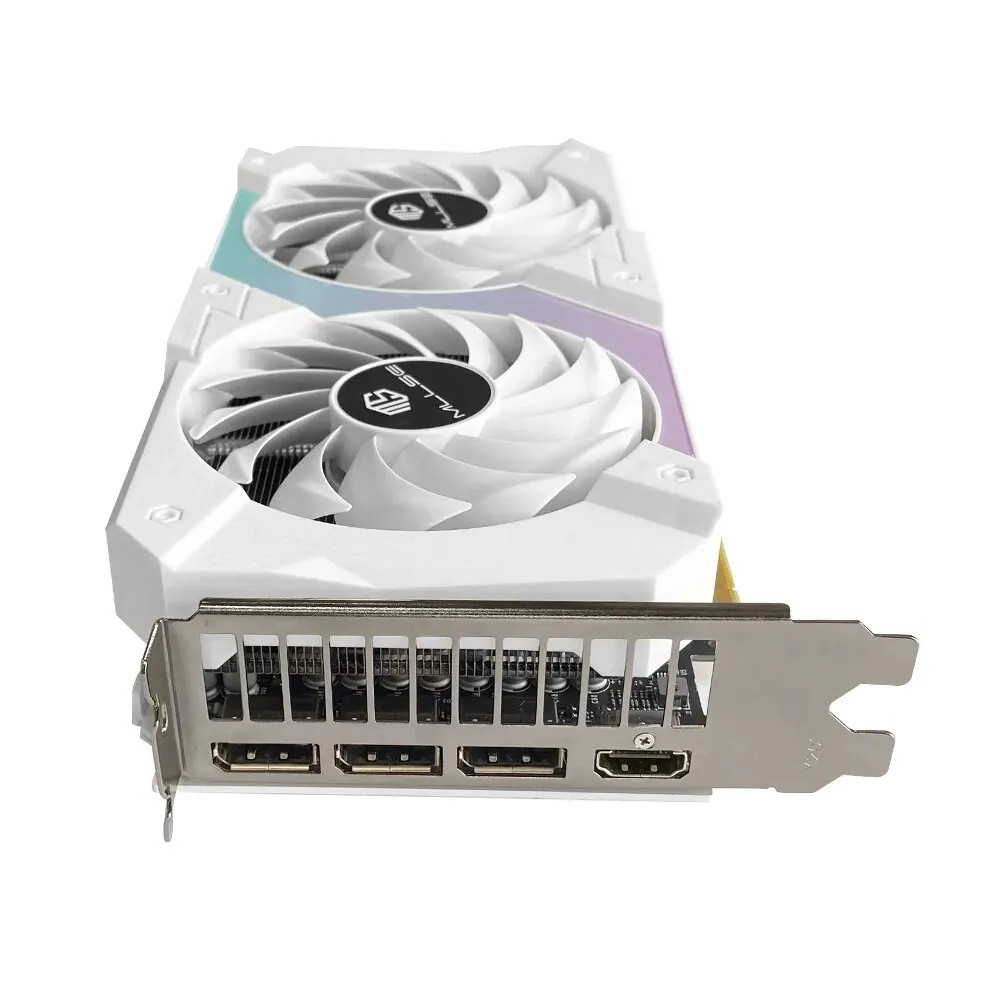

Display Output: Supports 4K and 8K HD via HDMI + DisplayPort.

📈 RTX 3060 Benchmark Results

📦 Package Includes

• Graphics Card ×1
• Warranty Card ×1
• User Manual ×1
• Fix Screws ×2

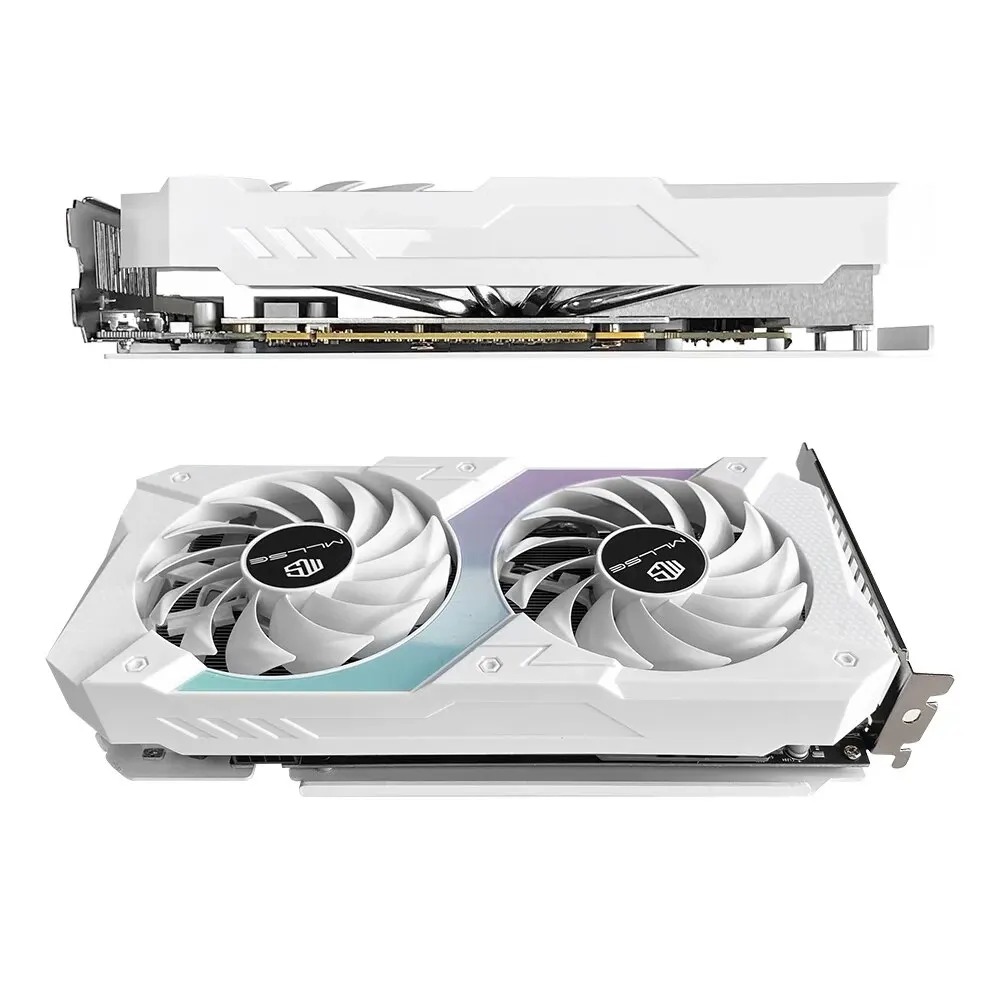

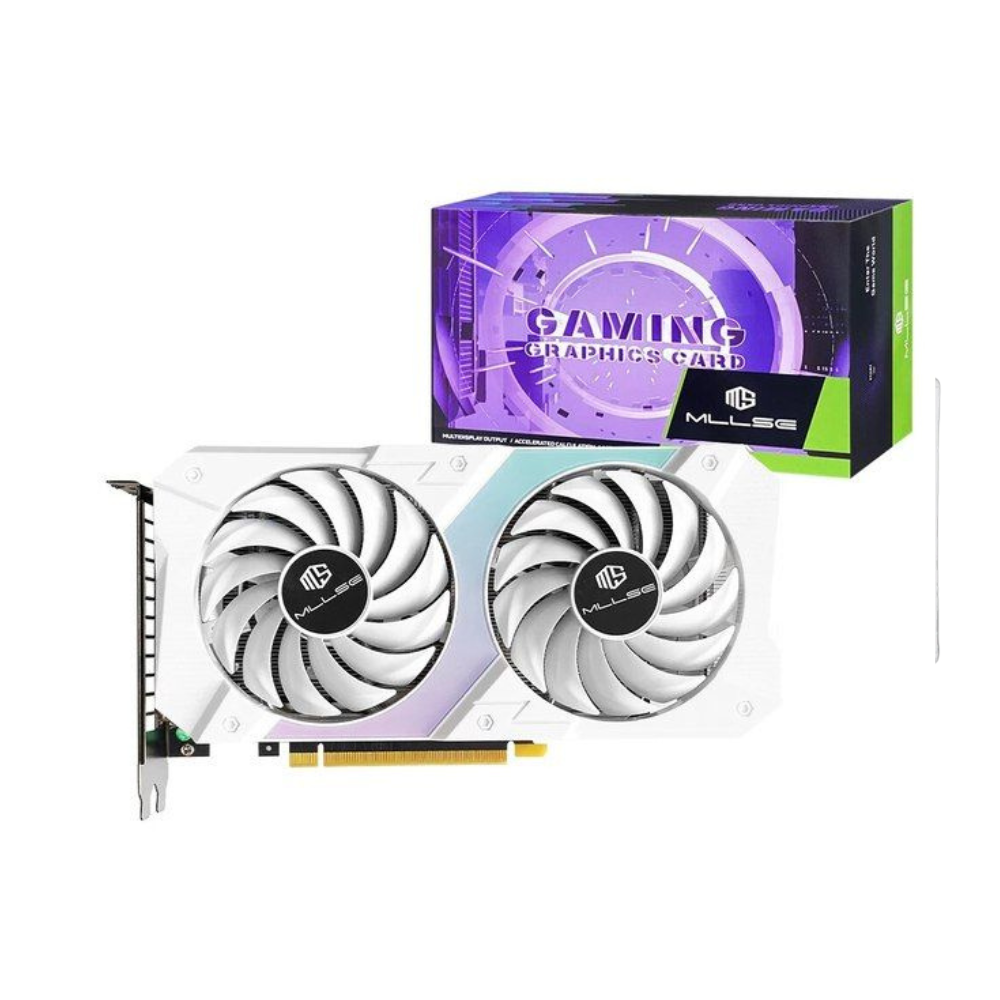

📸 Real Product Display

🧰 Installation Guide

1. Turn off the computer and unplug the power cord.
2. Remove the chassis cover and locate the PCI-E slot.
3. Remove the metal backplate of the chosen expansion slot.
4. Insert the PCI-E connector firmly into the slot.
5. Secure the graphics card using the provided screws.
6. Connect the 8-pin power connector to the GPU power input.

🌡️ Temperature & Usage Notice

• Normal operating temperature: 30°C–85°C.
• Hot ambient: 50°C–85°C.
• 3D gaming or HD video: around 90°C.
• Above 95°C, auto frequency reduction protects the GPU.

❓ Questions & Answers

Q: Why do the golden fingers have scratches?
A: Each card is tested before leaving the factory. Minor surface marks are normal and do not affect performance.

Q: Where can I download the driver?
A: Visit the official NVIDIA website to download the latest drivers.
